Long Cycle Life and Smart BMS

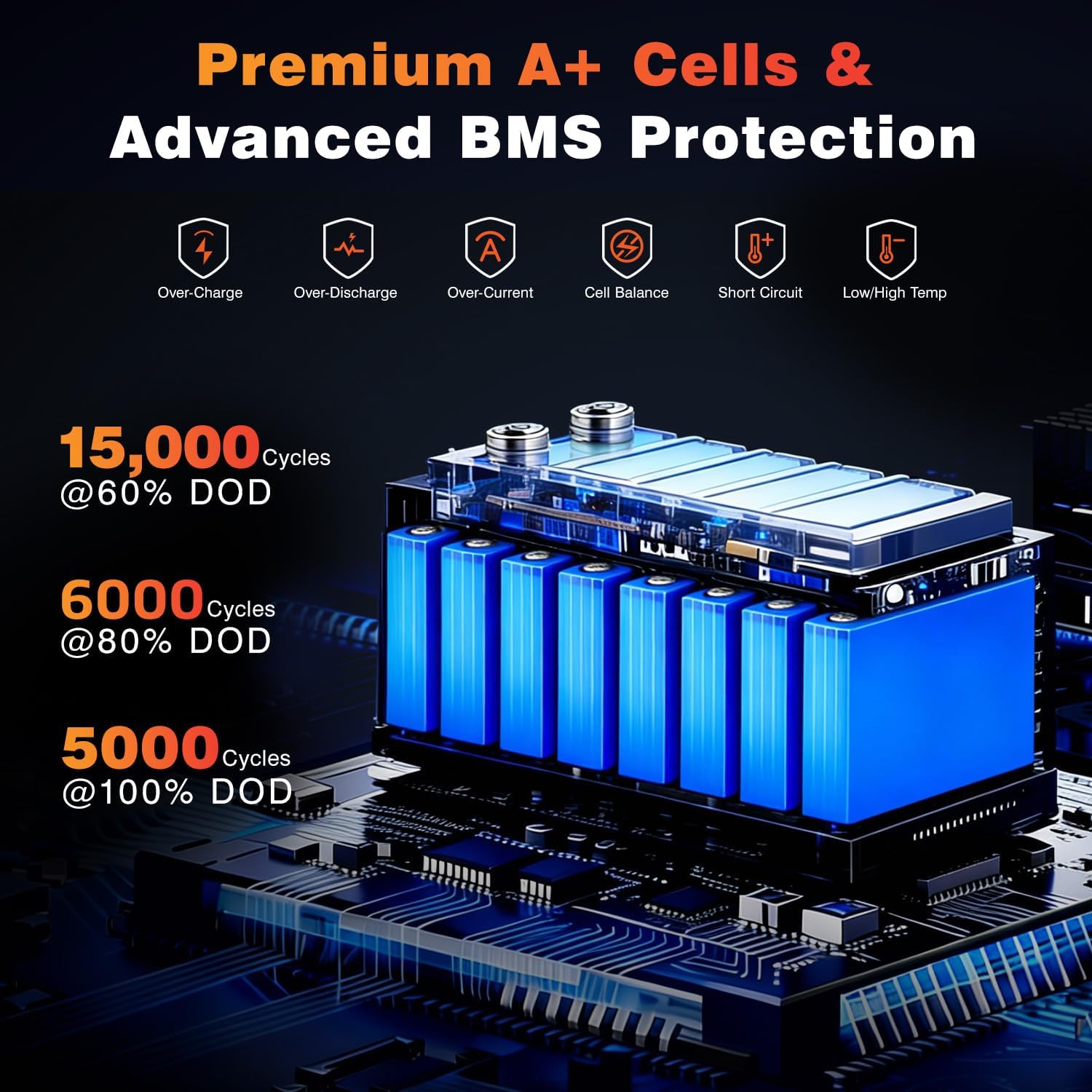

- This 25.6V 100Ah LiFePO₄ lithium battery delivers 2560Wh of usable energy and is designed for long-term, stable deep cycle operation.Built with Grade A lithium iron phosphate cells and a smart Battery Management System (BMS), it supports consistent performance across repeated charge and discharge cycles. The integrated BMS provides cell balancing, over-current, over-voltage, and temperature protection to ensure safe operation in RV, marine, solar, and off-grid systems, and meets applicable UL and FCC standards.
Low Temperature Protection
- Designed for real-world use, this LiFePO₄ battery features low-temperature protection to ensure reliable operation in cold environments. Charging automatically pauses below 0°C (32°F), and discharging stops below –20°C (–4°F), resuming once temperatures return to safe levels. This makes it suitable for winter RV use, marine applications, and off-grid systems.
Drop-in Replacement for Lead-Acid Batteries

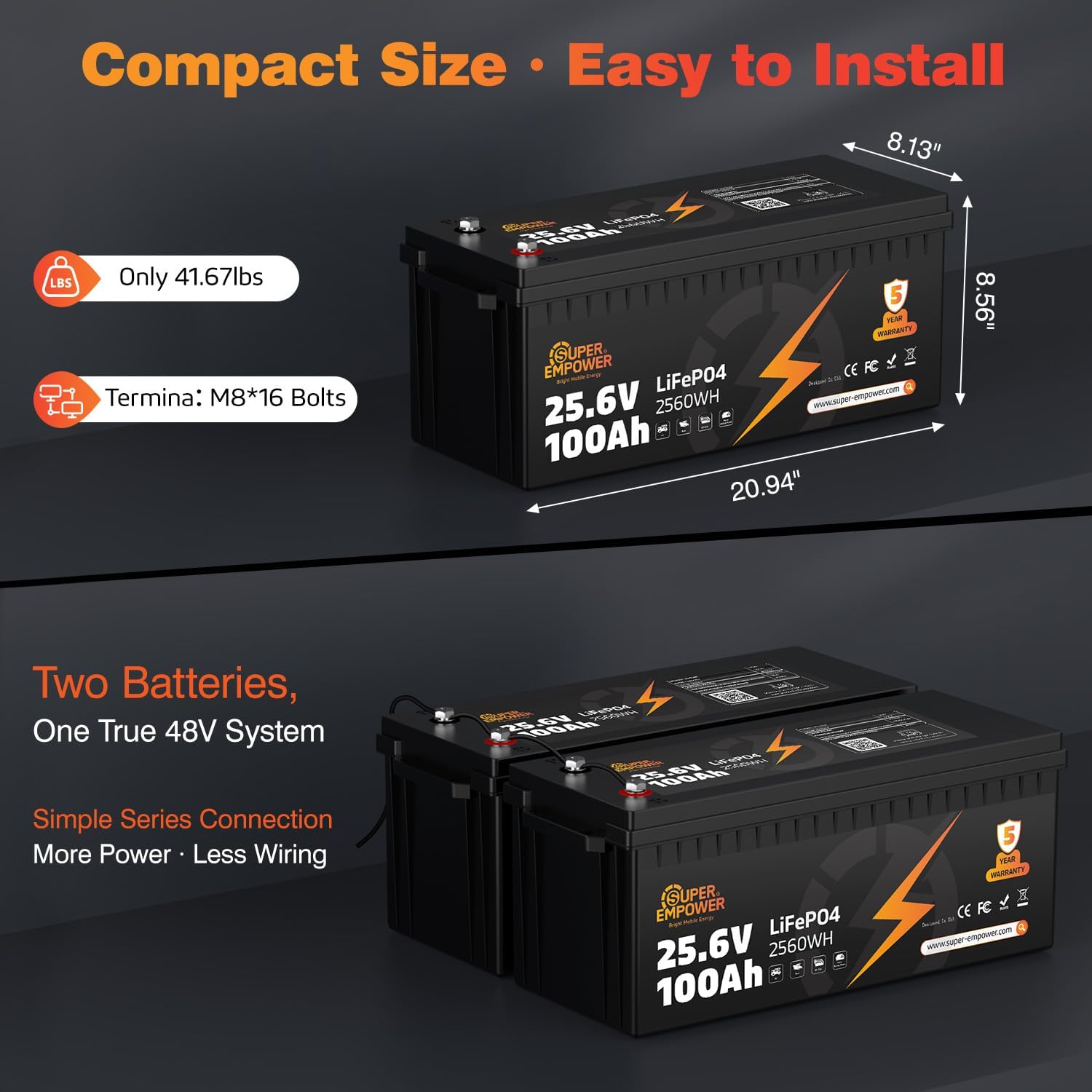

- This 25.6V 100Ah LiFePO₄ battery is a direct replacement for traditional lead-acid, AGM, and SLA batteries. With dimensions of 20.94 inches x 8.13 inches x 8.56 inches and a weight of 41.45 lbs, it fits easily into standard battery boxes, making it an ideal solution for RV, boat, and solar applications. Upgrade to a more efficient and durable battery with no modifications required for a seamless installation.
Expandable Configuration for Larger Power Needs
- This lithium battery supports up to 2 batteries in series and 4 in parallel, allowing expansion to a 51.2V 400Ah system with up to 20.48kWh capacity. Ideal for RV energy storage, marine power systems, solar setups, and off-grid power stations, the integrated BMS ensures safe multi-battery operation and stable performance for higher power demands.
5-Year Warranty
- Each LiFePO₄ battery includes a 5-year limited warranty covering manufacturing defects under normal use. SUPER EMPOWER provides post-purchase support in accordance with standard product service policies to maintain customer satisfaction.
25.6V Lithium Battery 100AH Brief Specifications
Operating Voltage
25.6V
Charging Voltage
28.8±0.4V
Recommended Charge Current
20A (0.2C)
Max Continuous Discharge Current
100A
Max. Continuous Output Power
2560W
25.6V Lithium Battery 100AH Precautions for Use
SUPER EMPOWER designs and develops LiFePO₄ lithium battery systems for RV energy storage, solar power systems, marine and off-grid applications.This 25.6V 100Ah LiFePO₄ battery is built with Grade A lithium iron phosphate cells and an intelligent 100A BMS, providing stable and reliable power for mobile, vehicle-mounted, and stationary energy systems.
25.6V Lithium Battery 100AH Resources/Downloads
Key Benefits of 12V Lithium Battery 100AH
Versatile and Durable
Low voltage protection prevents over-discharge and cell damage.
Lighter and Compact
High-energy density lithium-ion battery provides more power than lead-acid batteries.
Scalability
Modularity is a key factor for easy expansion.
Extended Lifespan
Up to 6,000 charging cycles compared to the 500 cycles of lead-acid batteries.
Faster Charging
A higher charge acceptance rate allows the batteries to recharge quickly.
12V Lithium Battery 100AH YouTube Demonstration Video
